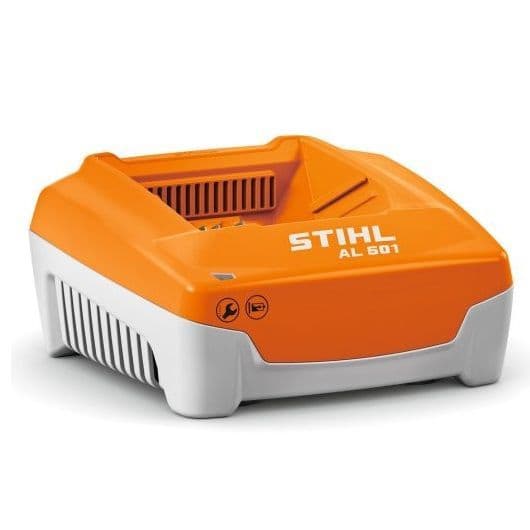

Stihl AL501 High Speed Charger (EA094305704)
Product Code EA094305704
230V hi-speed quick charger for STIHL AK System and AP System batteries. This charger has a 12 A charging current for fast recharge times and a built-in fan for active battery cooling.
The AL501 automatically switches off when the battery is fully charged to prevent overcharging too. Two-stage charging means the battery is first charged at a constant current up to a predetermined voltage limit. Then, the charger switches over to charging at a constant voltage before the current reduces itself automatically until charging is complete. A built in cable tie with Velcro strap on the back means you can wind the cable to the charger to reduce its length. Plus, this charger can be wall mounted for space saving storage.
| AK System charge times (80/100%) | ||
|---|---|---|
| AK 10 battery | 25 mins | 45 mins |
| AK 20 battery | 30 mins | 50 mins |
| AK 30 S battery | 35 mins | 60 mins |
| AP System charge times (80/100%) | ||
|---|---|---|
| AP 100 battery | 35 mins | 45 mins |
| AP 200 S battery | 30 mins | 45 mins |
| AP 300 S battery | 30 mins | 45 mins |
| AP 500 S battery | 40 mins | 55 mins |
| AR 2000 L battery | 120 mins | 160 mins |
| AR 3000 L battery | 180 mins | 230 mins |
| Rated voltage | 230 V |
| Rated current | 2.6 A |
| Power consumption | 570 W |
| Weight | 1.3 kg |
| Charging current | 12 A |
| Charging power | 510 W |
